Zip multiple files

Overview

The Zip Files function compresses multiple files into a single ZIP archive. This is the most versatile compression operation in Archive Manager Pro, allowing you to bundle multiple files together efficiently.

Function Description

Node Name: Zip Files
Category: Archive Manager
Type: Synchronous (blocking operation)

Compresses multiple specified files and creates a ZIP archive containing all files. The operation completes and returns a boolean indicating success or failure.

Input Parameters

Output Parameters

Basic Setup Steps

1. Create the File Array

• Add a Make Array node to your Blueprint
• Set the array type to String (file paths)
• Add file path entries:
  • Add absolute file paths
  • Click Add pin + for additional files

2. Add the Zip Files Node

• Right-click in the Event Graph
• Search for “Zip Files”
• Add the Zip Files node from the Archive Manager category

3. Connect the Array

• Connect the Array output from Make Array to Path to Files input
• The purple connection indicates array data type

4. Configure Zip Output

• Path to Zip: Enter the full path for the output ZIP file
  • Example: F:\Repos\tests\ArchiveManager\Multiple_files.zip

5. Set Compression Options

• Delete After Compression:
  • ☑️ Checked: All original files are deleted after successful compression
  • ☐ Unchecked: Original files are preserved (recommended for safety)

6. Handle the Result

• Connect the Return Value to a Branch node
• True branch: Compression succeeded – add success actions
• False branch: Compression failed – add error handling

7. Add User Feedback

• Connect a Print String node to show operation status
• Example: “Multiple files zipped!” for success

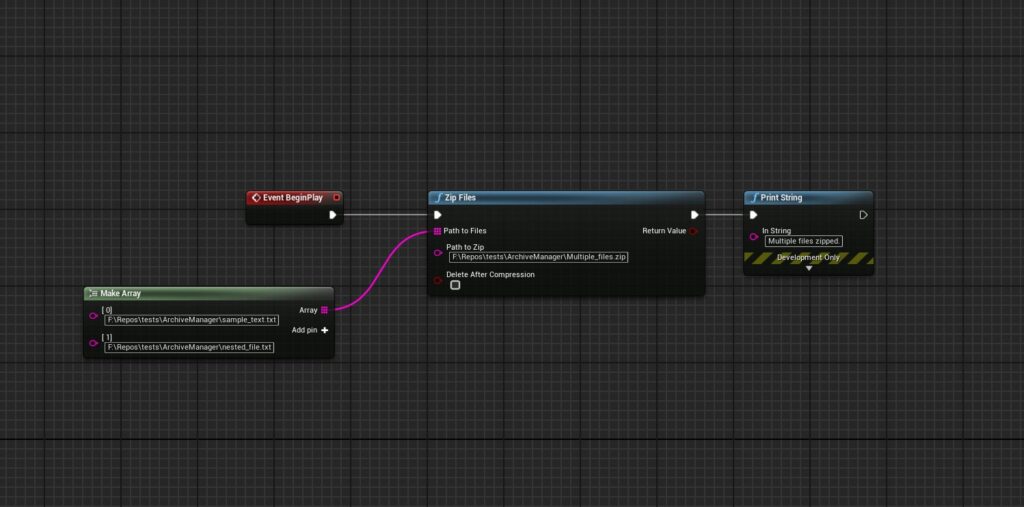

Example Blueprint Setup

Example Array Setup Options

Option 1: Static File List (screenshot above)

Use Make Array with hardcoded file paths – good for known files.

Option 2: Dynamic File Collection

Get Files in Directory
↓ (filter by extension)
Zip Files

Option 3: Variable Array

Get Variable (String Array)
↓
Zip Files

Option 4: User Selection

File Dialog → Selected Files Array
↓
Zip Files

Common Use Cases

• Project backup: Archive multiple project files together
• Asset bundling: Package game assets for distribution
• Document archiving: Compress related documents into single file
• Log collection: Bundle multiple log files for analysis
• User content packaging: Archive user-generated files

Error Handling

If the operation fails, use Get Last Archive Error for specific details:

• One or more files not found
• Insufficient disk space
• Permission denied on source or destination
• Invalid file paths in array
• Destination path not writable

Best Practices

File Management

1. Verify all file paths exist before compression
2. Use absolute paths to avoid path resolution issues
3. Check file permissions on all source files
4. Ensure destination directory exists

Array Management

1. Remove empty strings from the array
2. Validate each path before adding to array
3. Handle duplicate paths appropriately
4. Sort paths for consistent archive structure

Performance Tips

1. Keep arrays reasonably sized (< 1000 files for sync operation)
2. Consider async version for large file sets
3. Test with small arrays first
4. Monitor memory usage with large files

Archive Structure

Files are stored in the ZIP with their original names (without directory structure). For example:

• Input: C:\Folder1\File1.txt, D:\Folder2\File2.txt
• ZIP contains: File1.txt, File2.txt

Performance Notes

File access: All files are read into memory during compression

Synchronous operation: Blocks execution until complete

Memory usage: Scales with total file size

For large file sets: Consider using Zip Files (async) instead

C++ Usage

#include "ArchiveManagerBPLibrary.h"

// Multiple files compression
TArray<FString> FilesToCompress;
FilesToCompress.Add(TEXT("C:/MyProject/File1.txt"));
FilesToCompress.Add(TEXT("C:/MyProject/File2.txt"));
FilesToCompress.Add(TEXT("C:/MyProject/File3.txt"));

FString OutputZip = TEXT("C:/MyProject/MultipleFiles.zip");
bool DeleteOriginals = false;

bool Success = UArchiveManagerBPLibrary::ZipFiles(FilesToCompress, OutputZip, DeleteOriginals);

if (Success)
{
    UE_LOG(LogTemp, Log, TEXT("Files compressed successfully: %s"), *OutputZip);
}
else
{
    FString Error = UArchiveManagerBPLibrary::GetLastArchiveError();
    UE_LOG(LogTemp, Error, TEXT("Compression failed: %s"), *Error);
}

TArray<FString> CollectProjectFiles(const FString& Directory, const FString& Extension)
{
    TArray<FString> FoundFiles;
    TArray<FString> FilePaths;

    // Find all files with specific extension
    IFileManager::Get().FindFilesRecursive(FilePaths, *Directory, *(TEXT("*.") + Extension), true, false);

    // Validate each file
    for (const FString& FilePath : FilePaths)
    {
        if (FPaths::FileExists(FilePath))
        {
            FoundFiles.Add(FilePath);
        }
    }

    return FoundFiles;
}

// Usage
TArray<FString> TextFiles = CollectProjectFiles(FPaths::ProjectContentDir(), TEXT("txt"));
bool Result = UArchiveManagerBPLibrary::ZipFiles(TextFiles, TEXT("C:/Backup/ProjectTexts.zip"), false);

UCLASS(BlueprintType)
class MYGAME_API UFileArchiver : public UObject
{
    GENERATED_BODY()

public:
    UFUNCTION(BlueprintCallable, Category = "File Management")
    bool ArchiveDirectory(const FString& SourceDirectory, const FString& OutputZip, bool bRecursive = true)
    {
        TArray<FString> FilesToArchive;

        if (bRecursive)
        {
            IFileManager::Get().FindFilesRecursive(FilesToArchive, *SourceDirectory, TEXT("*.*"), true, false);
        }
        else
        {
            IFileManager::Get().FindFiles(FilesToArchive, *SourceDirectory, true, false);
        }

        // Filter out directories and invalid files
        FilesToArchive.RemoveAll([](const FString& Path) {
            return !FPaths::FileExists(Path) || FPaths::DirectoryExists(Path);
        });

        if (FilesToArchive.Num() == 0)
        {
            UE_LOG(LogTemp, Warning, TEXT("No files found in directory: %s"), *SourceDirectory);
            return false;
        }

        UE_LOG(LogTemp, Log, TEXT("Archiving %d files from %s"), FilesToArchive.Num(), *SourceDirectory);
        return UArchiveManagerBPLibrary::ZipFiles(FilesToArchive, OutputZip, false);
    }

    UFUNCTION(BlueprintCallable, Category = "File Management")
    bool ArchiveGameLogs()
    {
        TArray<FString> LogFiles = CollectProjectFiles(FPaths::ProjectLogDir(), TEXT("log"));
        FString ZipPath = FPaths::ProjectSavedDir() / TEXT("LogBackup_") + FDateTime::Now().ToString() + TEXT(".zip");

        return UArchiveManagerBPLibrary::ZipFiles(LogFiles, ZipPath, false);
    }
};
